MOH2 Easy Start Guide

1. Check that you have received all the listed items

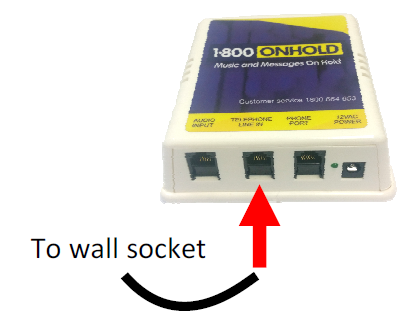

2. Unplug the phone line from your telephone and reconnect into ‘Telephone Line In’ on the 1800 OnHold Unit


3. Plug the RJ12 cable into the ‘Phone Port’ socket. Connect the other end into the “Phone Port” on the base of you telephone


4. Connect the CUBE’s power supply into a power source and ensure a blue light shows on the front of the unit. Connect the LIU into the ‘Audio Input’ socket and connect the other end into the head phone jack on the CUBE. Connect the power supply to the 1800 ONHOLD unit and plug into an active power source. Green light should start glowing when power is on.


5. Plug the internet cable into the back of the CUBE and plug the other end into a spare port on your internet modem



Placing A Call On Hold

To place a caller On Hold press the 2 on any telephone and then hang up. This will place your caller on hold. To resume the call, simply pick up the telephone again.

Place your instructional

sticker in a visible area, we recommend placing it on the main phone base for easy viewing.

Congratulations

You should be all up and running now. Call your business and place yourself on hold to confirm all is sounding great!

Please call our Customer Service Hotline on 1300 139 913 to confirm connectivity
